Modus
The device that turns any fridge into a monitored, audit-ready asset. Calibrated sensors capture temperature and humidity around the clock, and Modus builds a tamper-proof trail automatically, ready for Synapse.
±0.2 °CCalibrated sensor accuracy, with drift under 0.03 °C per year
-40 to +125 °CInternal temperature measurement range
GSM · WiFi · BLE · GPSConnectivity and positioning built in
ISO/IEC 17025Lab-calibrated sensors, traceable to NPL, PTB and NIST
Modus specifications

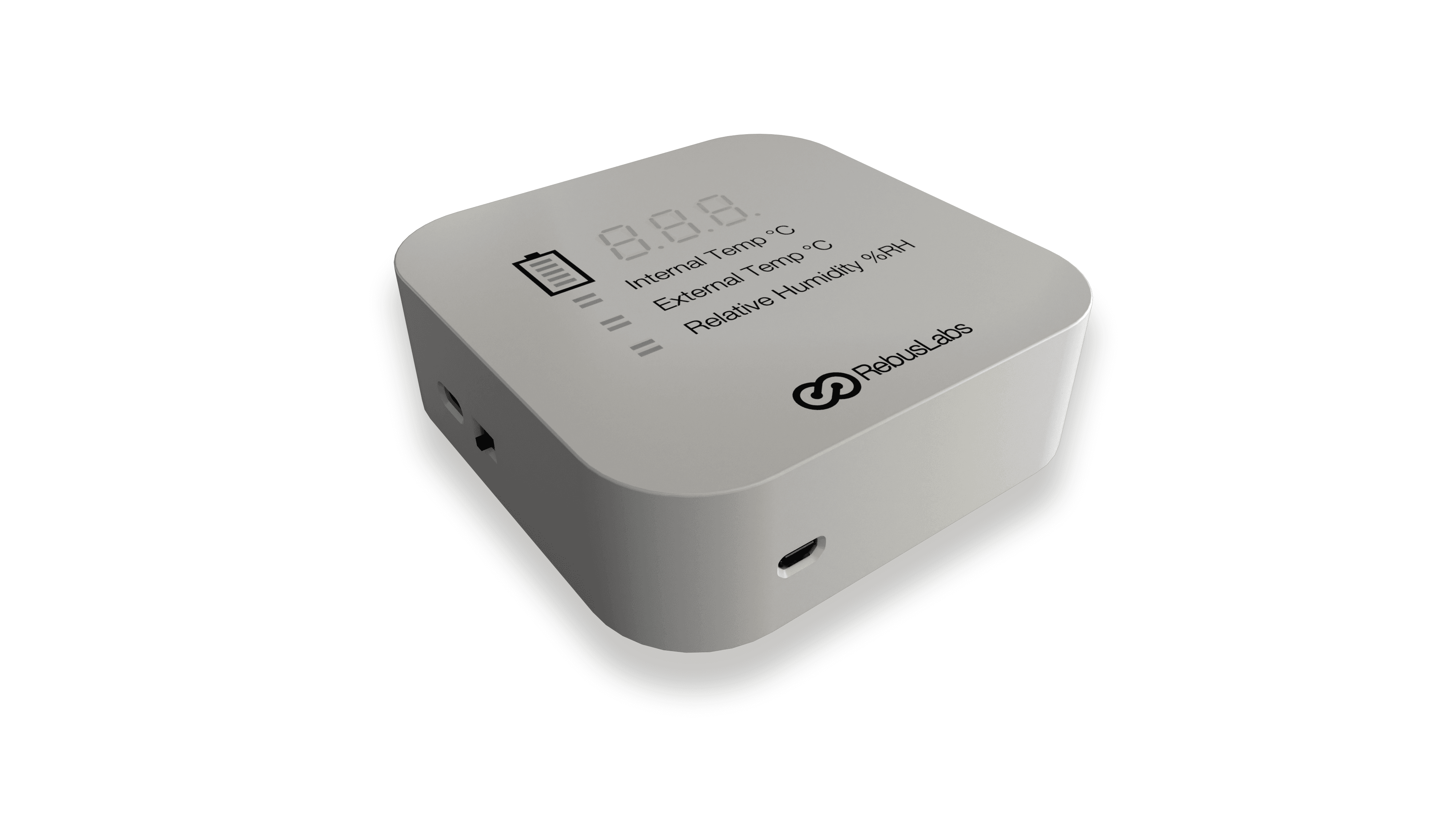

Modus device
- Readout
- Wide digital display for instant on-device temperature and humidity readings
- Power
- Internal rechargeable battery or wall outlet, with embedded long-term memory that keeps measuring through outages
- Sampling interval
- Configurable, typically every 5 minutes. The interval is firmware-controlled, so samples stay equidistant
- Thresholds
- Online, adjustable upper and lower limits for each measurement channel
- Installation
- No technical training required: place the unit, plug it in, power it on
- Certification
- CE approved and TÜV certified
Sensors and measurement
- Internal temperature
- -40 °C to +125 °C, accuracy ±0.2 °C
- External temperature
- Sensitivity 0.3 °C
- Relative humidity
- 0 to 100 %RH, precision ±2 %RH
- Long-term drift
- Less than 0.03 °C per year
- Measurement channels
- Temperature
- Humidity
- Voltage
- Movement and acceleration
- Location
- Volatile compounds
- Connection
- Wired probes, or wireless sensors spread across a site and linked to Modus hardware
Connectivity and positioning
- Cellular
- GSM 2G, 3G, 4G, LTE and NB-IoT
- Wi-Fi
- 802.11 a/b/g/n
- Bluetooth
- Bluetooth Low Energy
- Positioning
- GPS / DCS
- Access
- Web browser, tablet and mobile, with no software installation required
Calibration and traceability
- Standard
- Every sensor calibrated by ISO/IEC 17025 accredited laboratories
- Traceability
- Traceable to the NPL, PTB or NIST national metrology institutes
- Certificate
- Each sensor ships with a calibration certificate documenting its measurement uncertainty and traceability chain
- No-touch swap
- A remote no-touch swap replaces a sensor without breaking the monitoring record, so every sensor in service holds a current certificate
- Warranty
- Device and accessories are covered for the full subscription period, with no hidden costs
On-device alerting

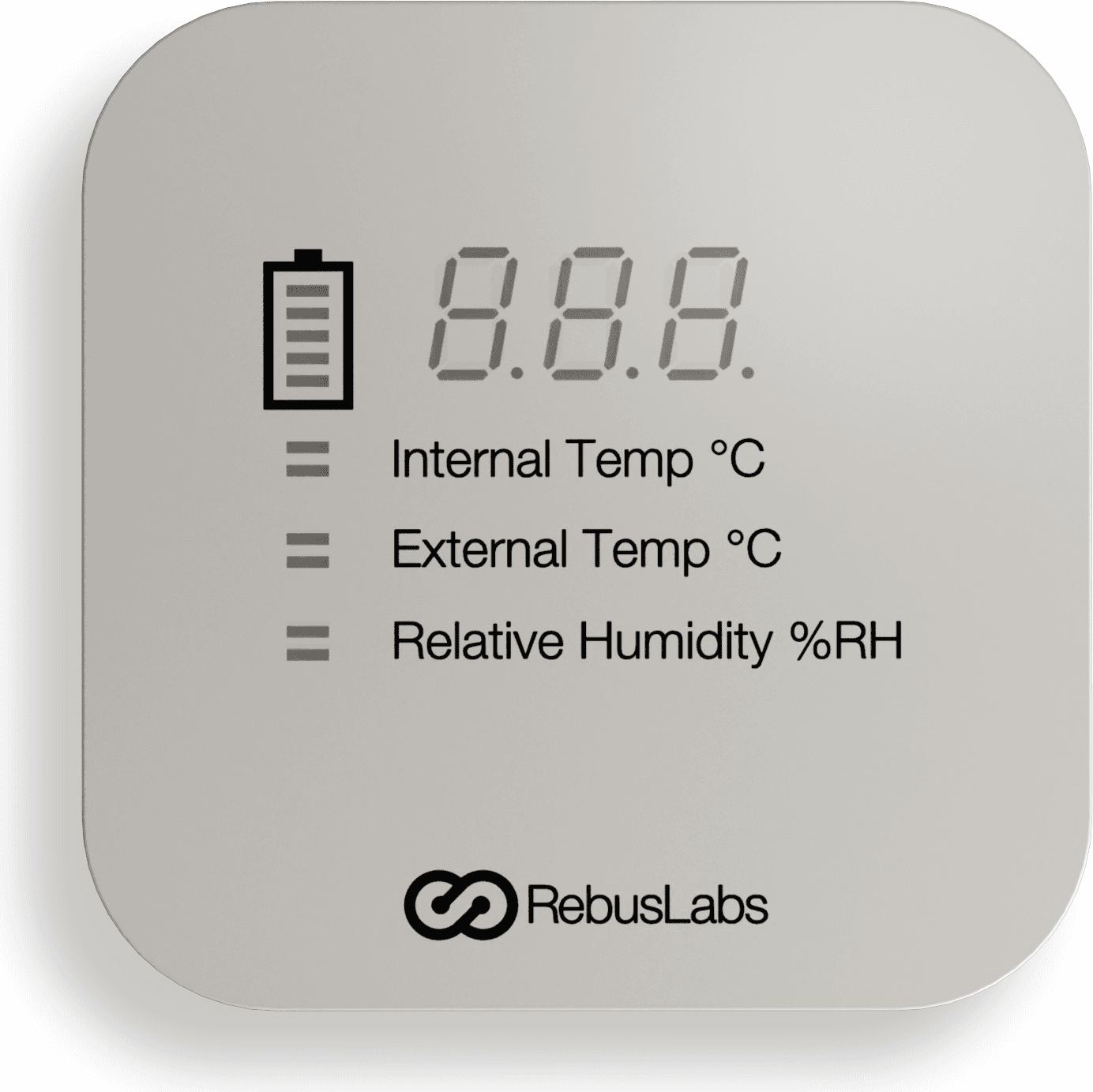

- Display
- A wide digital screen shows live temperature and humidity at the unit
- Instant SMS
- Modus sends an SMS the moment a reading crosses a configured threshold, over GSM
- Instant warning
- Acts as your digital assistant, so an environmental event is never missed

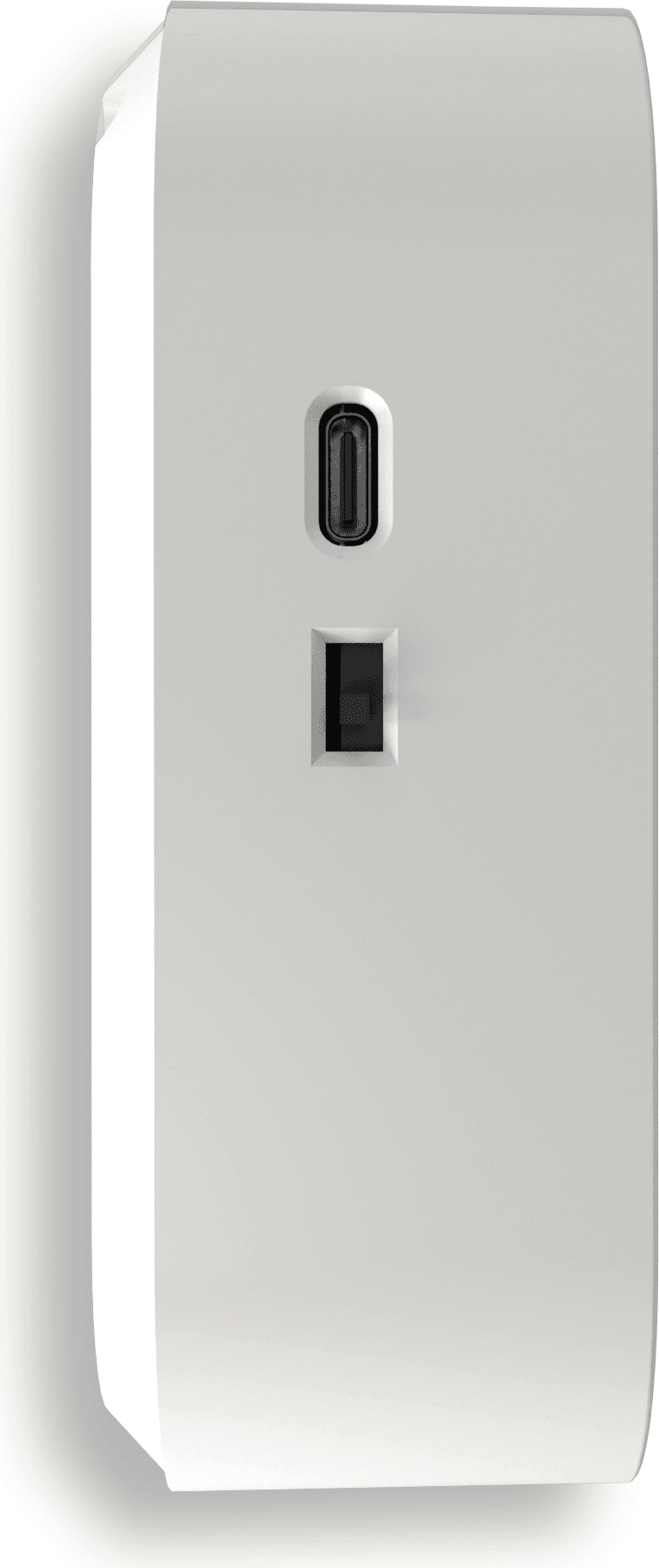

Dimensions
114 mm (11.4 cm)
40 mm (4.0 cm)
114 mm (11.4 cm)
Installation and support
- Installation
- Place the unit, plug it in, power it on. Measurements start immediately
- Training
- No technical training required to install or operate
- Support
- A dedicated support team backs setup and day-to-day operation
Electrical and operating requirements
- Line voltage
- 100–240 V AC
- Frequency
- 50 Hz to 60 Hz, single phase
- Operating temperature
- 5 °C to 45 °C (40 °F to 115 °F)
- Relative humidity
- 5% to 90% noncondensing
What's in the box
- Modus

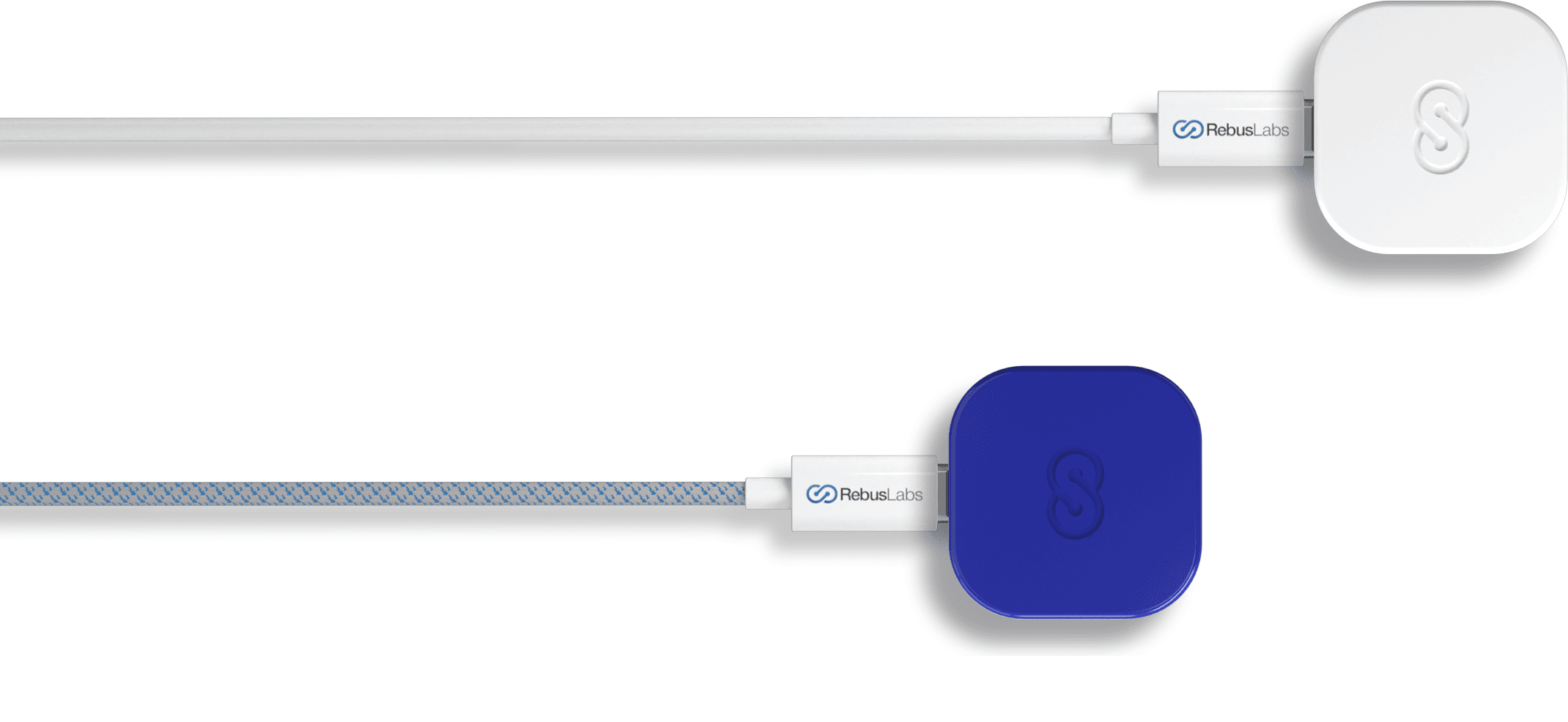

- Temperature sensor
- Temperature & humidity sensor

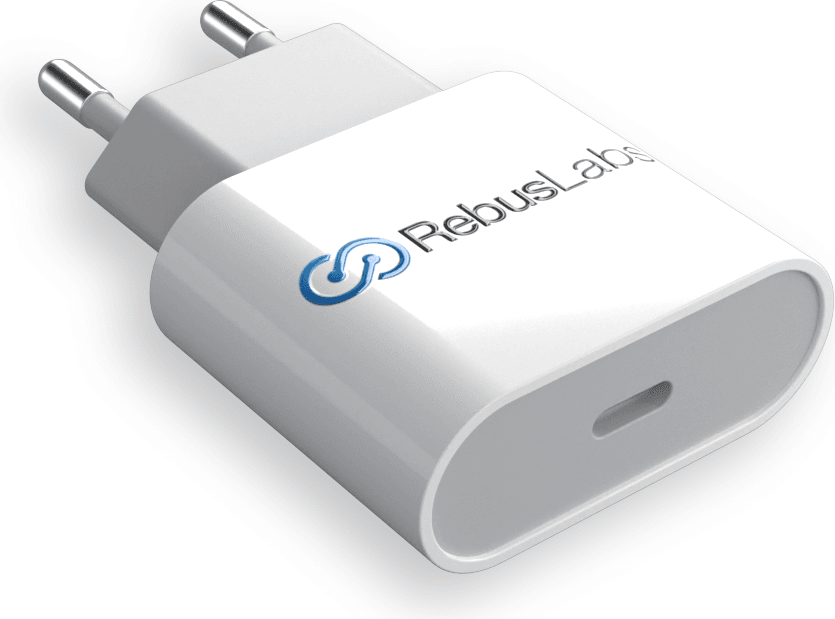

- 20 W power adapter
- Power cord (2 m)
- 2 × sensor cable (1 m)
